mainline features on a pushrod system

Our T812 Pan & Tilt camera is tough, machined from solid stainless steel, waterproof to IP68, 7 Bar, 100 psi and designed to operate on the T804 pushrod system. The camera does not need to be pressurised to attain its waterproof status, no need for pumps or Nitrogen purging, the camera is sealed at the factory and will retain sealing integrity through its life. The camera head includes an auto-uprighting system that gives the operator a view that is akin to actually being inside the pipe being surveyed. A single button-push on the T804 sets the focus and points the camera directly forward making orientation during a survey immediate. The camera head can rotate and tilt through 360 degrees. The camera also has the capability of measuring defects in pipework without the need for grids or lasers, the measurement can be made and saved during the live survey taking just a few seconds. This capability can be added at any time to the system when required.

T812 Pan and Tilt camera head

The T812 Pan and Tilt camera with ‘Human Perspective View’ and Digital Lens Measurement.

T812 features

Human Perspective view - no upside-down pictures Digital measurements of any artefact Perfect pictures from our own camera design Self-centring - one-touch for a straight-ahead view Waterproof to IP68 Custom LED lighting for illumination in up-to 36” pipes Designed for use on the T804 Trogloprobe pushrod system Fits our standard skid set for 3”, 4” and 6” Sacrificial front bumper - easily replaced in five minutes 12” Universal wheeled skid available
Troglotech Pushrod System - Drain Camera - CCTV Drainage Pan & Tilt Camera

technical information.

the T812 pan and tilt camera

Highly robust with Stainless-steel construction Waterproof and operational at IP68 (7 Bar 100 psi) Dirt seals, quadrings and o-ring seals on rotating parts for long service life High Definition, 540 lines pph digital sensor module designed by Troglotech Sapphire windows ‘Human Perspective View’ - picture mimics how a human would view a pipe Electronic focus control - no moving parts Custom LED lighting - equivalent to 80W Halogen Self - centres when powered-up and via a one-key press on keyboard Compatible with future products Digital Clarity - produces a sharp, noise-free picture in low-light conditions Low-energy design for long mission time Can be fitted to all Trogloprobe T804 units

manuals specifications and brochures in pdf format.

video

digital measurements

introduction

Ultimate underground technology +44 (0)1730 711 240

Ultimate underground technology      Unit 1. 3 Penns Road, Petersfield, Hampshire GU32 2EW     United Kingdom       +44(0)1730 711240
Troglotech Pushrod System - Drain Camera - CCTV Drainage Pan & Tilt Camera

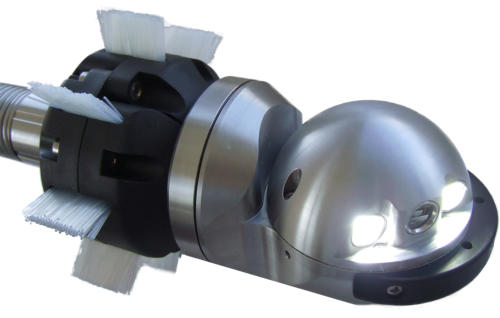

the T812 camera fitted with 4” brush skids

Troglotech Pushrod System - Drain Camera - CCTV Drainage Pan & Tilt Camera Troglotech Pushrod System - Drain Camera - CCTV Drainage Pan & Tilt Camera

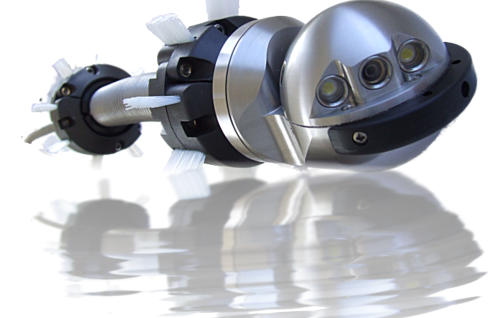

non-pressurised - waterproof to ip68 - 7 bar 100 psi

Troglotech Pushrod System - Drain Camera - CCTV Drainage Pan & Tilt Camera Troglotech Pushrod System - Drain Camera - CCTV Drainage Pan & Tilt Camera

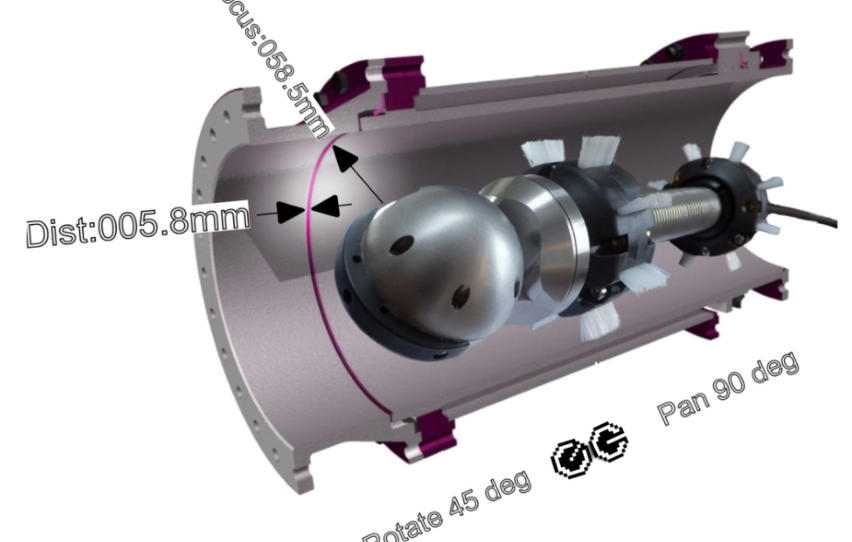

crack-width measurements option (click for details)

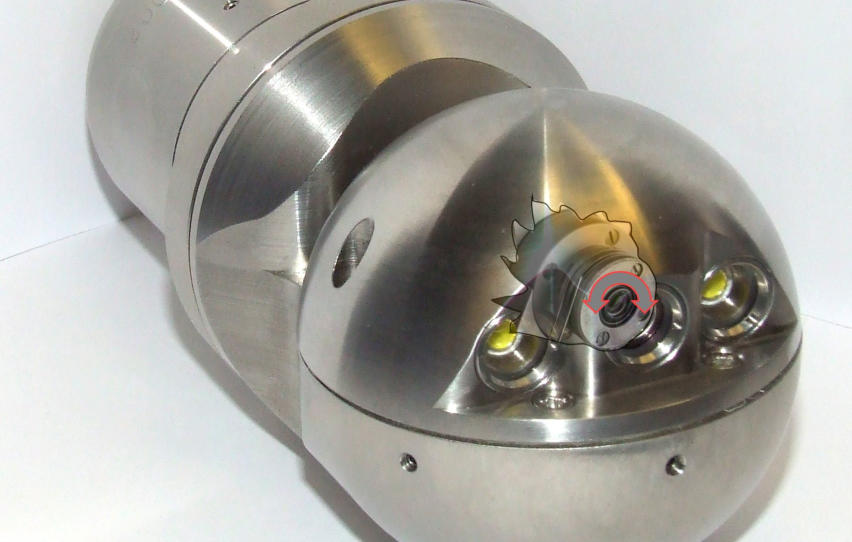

60mm in diameter - can be used in pipes up to 12” (300mm)

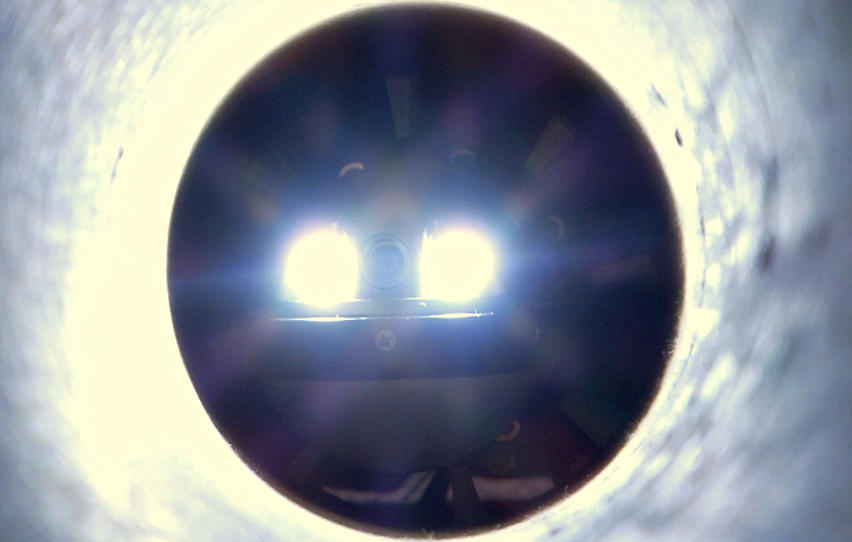

high intensity directional lighting

Troglotech Pushrod System - Drain Camera - CCTV Drainage Pan & Tilt Camera

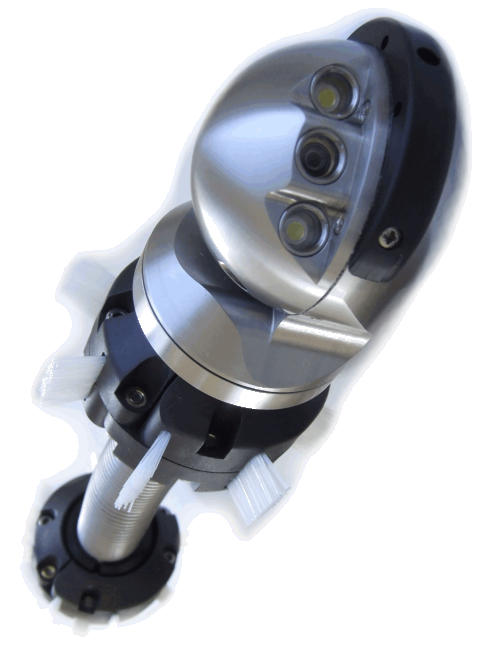

360 degree pan & tilt

with auto-upright and ‘human perspective view’

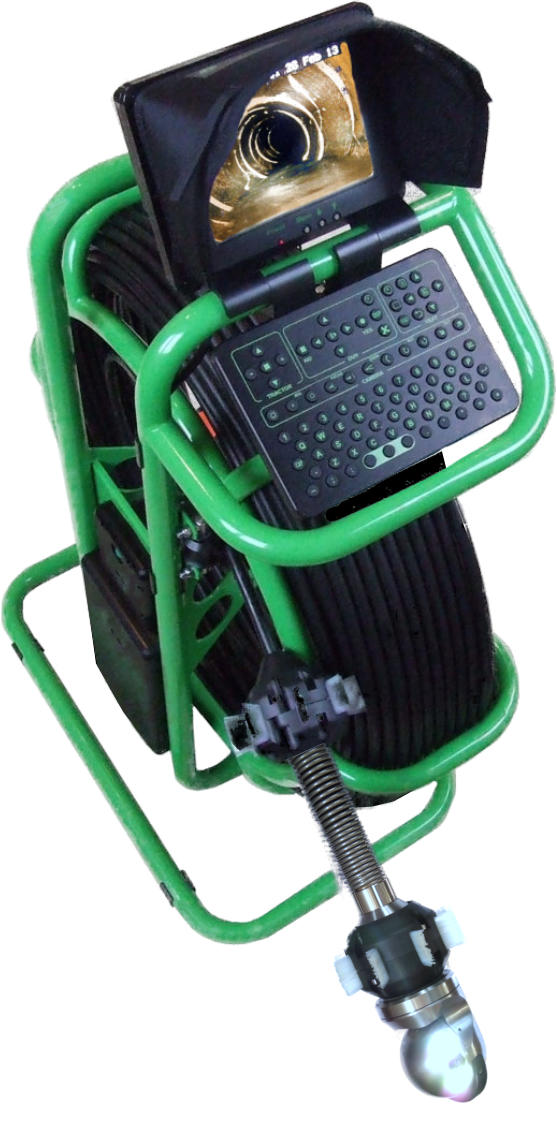

direct fitment on standard Trogloprobe T804

Troglotech Pushrod System - Drain Camera - CCTV Drainage Inspection Troglotech Pushrod System - Drain Camera - CCTV Drainage Inspection Troglotech Pushrod System - Drain Camera - CCTV Drainage Inspection

mainline features on a pushrod system

Our T812 Pan & Tilt camera is tough, machined from solid stainless steel, waterproof to IP68, 7 Bar, 100 psi and designed to operate on the T804 pushrod system. The camera does not need to be pressurised to attain its waterproof status, no need for pumps or Nitrogen purging, the camera is sealed at the factory and will retain sealing integrity through its life. The camera head includes an auto-uprighting system that gives the operator a view that is akin to actually being inside the pipe being surveyed. A single button-push on the T804 sets the focus and points the camera directly forward making orientation during a survey immediate. The camera head can rotate and tilt through 360 degrees. The camera also has the capability of measuring defects in pipework without the need for grids or lasers, the measurement can be made and saved during the live survey taking just a few seconds. This capability can be added at any time to the system when required.

T812 Pan & Tilt camera

head for the T804

Machined from solid stainless steel, the T812 is tough but clever with ‘Human Perspective View’ and Digital Lens Measurement

T812 features

Human Perspective view - no upside-down pictures Digital Lens Measuring Perfect pictures from our own camera design Self-centring - one-touch for a straight- ahead view Waterproof to IP68 Custom LED lighting for illumination in up-to 36” pipes Designed for use on the T804 Trogloprobe pushrod system Fits our standard skid set for 3”, 4” and 6” Sacrificial front bumper - easily replaced in five minutes 12” Universal wheeled skid available
Troglotech Pushrod System - Drain Camera - CCTV Drainage Inspection Pan and Tilt Camera

manuals specifications

and brochures in pdf

format.

the T812 pan and tilt camera

Highly robust with Stainless-steel construction Waterproof to IP68 Dirt seals, quadrings and o-ring seals on rotating parts for long service life High Definition, 540 lines pph digital sensor module designed by Troglotech Sapphire windows ‘Human Perspective View’ - picture mimics how a human would view a pipe Electronic focus control - no moving parts Custom LED lighting - equivalent to 80W Halogen Self - centres when powered-up and via a one-key press on keyboard Compatible with future products Digital Clarity - produces a sharp, noise-free picture in low-light conditions Low-energy design for long mission time Can be fitted to all Trogloprobe T804 units

technical information.

video

digital measurements

introduction

Ultimate underground technology      Unit 1. 3 Penns Road, Petersfield, Hampshire GU32 2EW     United Kingdom       +44(0)1730 711240 Troglotech Pushrod System - Drain Camera - CCTV Drainage Inspection

the T812 camera fitted with 4” brush skids

Troglotech Pushrod System - Drain Camera - CCTV Drainage Inspection

non-pressurised - waterproof to ip68 - 7 bar 100 psi

Troglotech Pushrod System - Drain Camera - CCTV Drainage Inspection

crack-width measurements option

60mm in diameter - can be used in pipes up to 12”

(300mm) high intensity directional lighting

Troglotech Pushrod System - Drain Camera - CCTV Drainage Inspection

360 degree pan & tilt

with auto-upright and ‘human perspective view’

direct fitment on standard Trogloprobe T804
